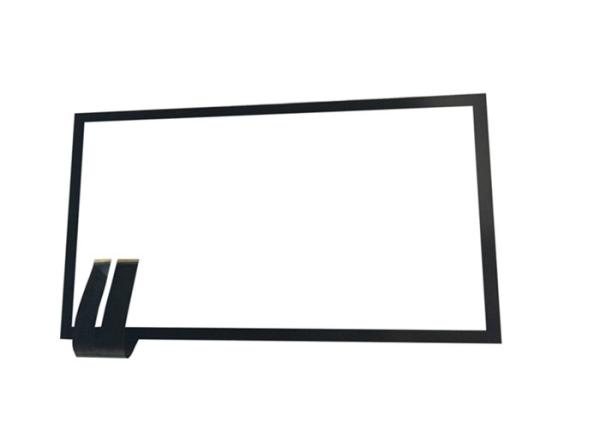

High Resolution Industrial Touch Panel 26 Inch For Touch Advertising Display Waterproof Dustproof Anti-Radiation

Name: High Resolution Industrial Touch Panel 26 Inch For Touch Advertising Display Waterproof Dustproof AntiRadiation
Brand: Touch-China
Price: 1 USD

Brand Name : Touch-China

Model Number : ZCC-4624

Certification : CE, Rohs, FCC

Place of Origin : china

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20K pcs / month

Delivery Time : 10-15days

Packaging Details : Standard export package

size : 26inch

Interface : USB

Touch Points : 10points

TP Structure : Cover glass+UV glue+ITO sensor glass

Surface hardness : More than 7H

Input method : Finger or capacitive pen

Working voltage : 5V

TP type : COB

Transmittance : ≥85%

IC controller : ILITEK

Contact Now

26inch Industrial Touch Panel with USB PCAP for touch advertising display

Basis Information:

Size:	26inch
Total Thickness:	3.3±0.3mm
Outline of Cover Lens:	614*361±0.5mm
Outline of ITO Sensor:	593.7*344.3±0.5mm
Viewing Area:	576*324±0.5mm
Active Area:	581*329±0.5mm
TP Structure:	G+G
Controller:	ILITEK, WEIDA, Silion works, EETI (Optional)
Cover glass thickness:	1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)
Cover glass treatments:	AG, AR, AF, AE (Optional)
CTP interface:	USB
Operating system:	Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity	-20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity :	-30°C~80°C, 20~85% RH, non-condensing
Transparency	≥85%
Response time:	<10ms
ESD Air discharge:	8KV
ESD Contact discharge:	4KV
Pen hitting life:	≥10,000,000/point
Pen sliding Durability:	≥500,000 times
Finger Touch life:	≥35,000,000 times
Certifications:	CE, FCC, Rohs
Aspect ratio:	16:10
Report rate:	100HZ
Input method:	Finger or capacitive pen
Warranty:	1 Year

Capacitive touch screen Features:

Response speed fast, smooth touch.
Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
Precision-touch capacitive screen is using the body's current-sensing.
Accuracy up to 99% proficient in writing, no break no drift.
Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
No ghost after the first calibration, drift-free.
Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
Free drive, plug and play.
Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
Wear resistance, long life, low maintenance costs.

Competitive advantages:

1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.

Delivery Time:

Samples in stock: 1~3 working days

Customized project: 10~15days for samples

Mass production: 10~18days

Technical Drawings:

High Resolution Industrial Touch Panel 26 Inch For Touch Advertising Display Waterproof Dustproof Anti-Radiation
