15.6" Water resistance Capacitive Touch Panel with Physically Tempered Cover Glass
Specification:
| 1 | Viewing area | 295.02*166.57mm |
| 2 | OD of cover lens | 354*226mm |
| 3 | AA of ITO sensor | 296.8*168.3mm |
| 4 | OD of ITO sensor | 323.65*201mm |
| 5 | Structure | 6mm cover lens+1.1mm ITO sensor |
| 6 | Chipset | ILItek, EETI |
| 7 | Transmittance | ≥85% |
| 8 | Hardness | more than 7H |
| 9 | Working environment | -10-60℃ |
| 10 | Storage environment | -10-65℃ |
| 11 | Touch points | 1-10 points based on the OS. |
Projected Capacitive Touch panel:
- Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
- There is no air gap between layers like in a resistive touch panel.
- The patterns on the two parallel ITO layers form a grid of capacitors.
- The electric fields of these capacitors are projected through the top layer of glass.
- When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
- This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
- An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.
Development process:
- Receive customer's technical files, including PCAP drawing, LCD specification.
- Recommend standard products or customize products based on customer's requirements.
- Offer engineering drawing for confirmation and fill in project kick-off form.
- Make samples according to the confirmed drawing.
- Debug the samples based on the information on kick-off form, keep the FW.
- Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
- Pilot production.
- Mass production
Advantages:
- Physically tempered cover glass, support a ball of 500g falling on the center from 1.3m height.
- Enhanced durability and reliability
- Water proof, anti-explosion.
- Professional facilities and excellent design
- Optimized production capacity
- Optimized production yield rate.
Application Of Touch Panel
- Office Electronic Equipment: money counting machine, office phone set, copying mechine...
- Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
- Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
- Medical Devices: sphygmomanometer...
- Sports Equipment: running machine...
- Industrial Control Equipment: remote control, punched-card machine...
- Information Terminal Display: POS...
- Security Products: elevator controller, electronic indicator...
Advantage Of Touch Panel
1. We have 17-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
Lead time:
- For goods in stock, 3-5 days after PO.
- For customized samples, 15 days after the confirmation of engineering drawing.
- For mass production, 18-20 days after PO.
Shipment service:
FedEx, DHL, UPS, TNT, Aramex etc.

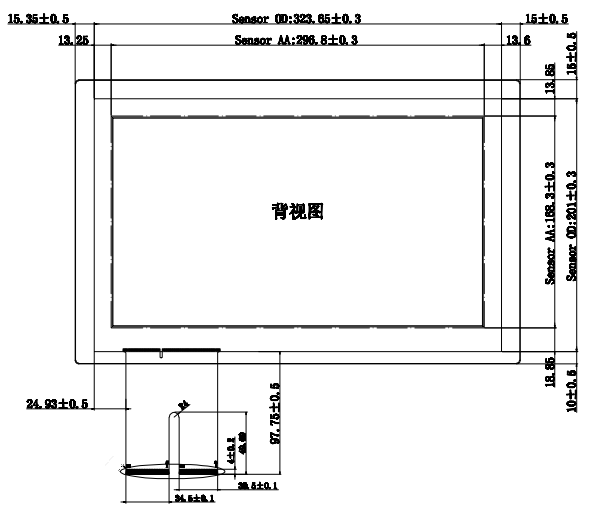

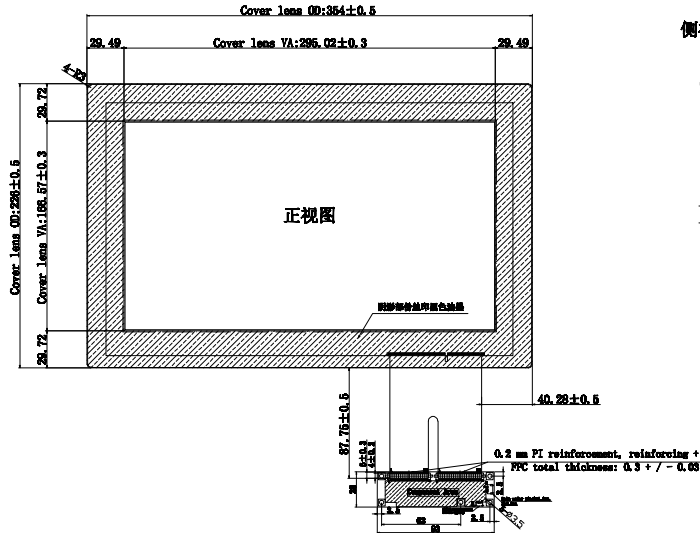

Engineering drawing:
Excellent waterproof:
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before delivery.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity is sizable.
Q:Does the product support customization?
A:Of course
Some of our great partners:
Cooperation with many large and internationally well-known enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech, KF, SMTC etc.
Product production environment map:
