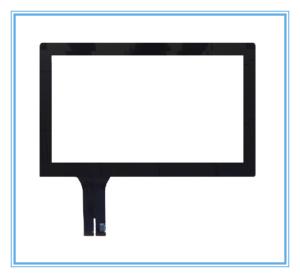

POS ATM Projected Capacitive Waterproof Touch Panel 19.5 inch, USB Interface
Product Specification:
| Size: | 19.5 inch |
| Total Thickness: | 2.6±0.2mm |
| Outline of Cover Lens: | 485*292.96±0.3mm |
| Outline of ITO Sensor: | 475*285.88±0.3mm |
| Viewing Area: | 435.32*238.04±0.3mm |
| Active Area: | 438.32*244.16±0.3mm |
| TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, EETI, Silicon Works etc.(Customized) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized) |
| Cover glass treatments: | AG, AR, AF, AE (Customized) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Projected Capacitive Touch panel:
- Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
- There is no air gap between layers like in a resistive touch panel.
- The patterns on the two parallel ITO layers form a grid of capacitors.
- The electric fields of these capacitors are projected through the top layer of glass.
- When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
- This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
- An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.
Delivery Time:
- Samples in stock: 1~3 working days
- Customized project: 10~15days for samples
- Mass production: 10~18days
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 86”, the bigger size are researching and developing.
A:What is the price of the product
Q:This product is mostly custom made, so the price is negotiable, but we will do our best to increase your profit
Drawings:
Application:
-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc
-- Advertising player -- Education Whiteboard -- Medical device
-- Industrial PC panel -- Multi-touch table -- POS
-- Restaurant menu -- ATM
